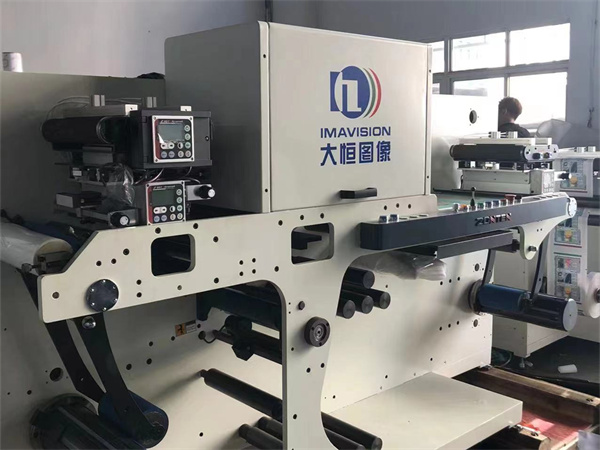

Automatic Inspecting and Rewinder Machine
Description
ZJP-330 automatic inspection machine is a high-end automatic inspection solution that ZONTEN cooperates with BST company, mainly for QC of large label printing factories.
ZJP automatic inspection machine rewinding and unwinding is driven by Mitsubishi Japan servo, Germany SICK color tracking electric eye, BST Germany correction, almost all imported equipment guarantees the stable operation of the equipment. The detection system is provided by BST company tubescan, which can monitor the printing quality problems such as missing labels, dirty labels, and unstable color registration. The machine can be equipped with a slitting function, which can detect the label-slitting in one step, and also has forward/reverse rotation. Function, can directly eliminate invalid bids online.
The following are the characteristics of the ZJP-330 automatic inspection machine inspection system:
TubeScan Digital Strobe+ 430
Web Viewing and Automatic Inspection System for web width < 430 mm including:
1 TubeScan Image Capture System with digital camera, high power LED illumination, power supply 100V ‐ 240V, 50/60Hz, binary defect output, shaft encoder with lay‐on wheel and spring load assembly 1 TubeScan Digital Strobe+ software, menu guided, optimized for intuitive touch operation, up to 20 lanes with user adjustable width, individual defect counter per lane, global repeat and defect counter, generation of binary defect output upon finding a defect (150 mA, 0 V low, +24 V high), detection of missing labels and major print defects (adjustable inspection sensitivity), automatic repeat synchronization, no additional print mark sensor required 1 Touch Monitor 15" for operator control
Technical Specification
| Specifications | ZJP-N8033 |
| Maximum Inspection Width | 30mm～240 mm，Customizable |
| Maximum Inspection Speed | 0.08mm（width）×0.14 mm（Length） |
| Image Resolution | (Customizable) |
| Minimum Defect Size (as a point) | 0.15mm2（Contras t≧20） |
| Minimum Defect Size (as a line)(W x L) | 0.15mm×5 mm（Contrast≧20） |
| Minimum Color Variances Detected | △E ≧ 3 |
| Minimum Registration Deviation Detected | ±0.2 mm |
| Material Thickness | 0.08～0.4 mm |
| Maximum Rewind Diameter | 800 mm / 650 mm |
| Core Inner Diameter | ￠76 mm，￠150 mm |
| Module (Optional) | Supervision Code, 2D Code, etc. |
More Details
BST web guide control
Paper feeding storage
Japan brand sevro driver and PLC control
6inch air shaft
Inspecting system, we can choice by customer request.
