Flexographic Label Printing Machine

LRY-320 flexographic label printing machine is a automatic stacked type printing machine. This machine equips with PLC touch screen control system, which make easier operation and more friendly user experience.


Product Detail

Product Tags

Description

LRY-320 flexographic label printing machine is a automatic stacked type printing machine. This machine equips with PLC touch screen control system, which make easier operation and more friendly user experience. The design of stacked color print units meet customer to print single color and multi color, and do double side print by turn bar. 3 die cutting stations make customer to do different die cut combination jobs after print. It is the most ideal solution for customers to print label, paper, cardboard, sticker, etc.

Model LRY-320 flexographic label printing machine have been manufactured and sold to customers for 18 years, it gets highly recognition from domestic and oversea customers. To provide customer the best, we insist on providing technological innovation and upgrade service from online and offline.

The picture above is flexographic label printing machine in configuration with 5 flexo print unit + laminate + 3 die cut, which customer can do print, auto ink dry, laminate, die cut and rewind at one time, a high effective production line. Meanwhile, options also can be added per different applications, like UV print, UV vanish, cold foil, delam&relam, slit, sheeter, CCD camera system, corona treatment, etc.

202104021141339105458c36a5468c9082f0e156043111
2021040211412961ae01a8aca646a69db67c88a483d80b
20210402114136fd654c847b4c4b56af89cbdbc1ecd771
202104021141391d13c1206bfe42318e95ca8117dabe4d
20210402114144870e3ec8e9d343fc90611edea0dd4e88

Technical Specification

Model LRY-320 LRY-470
Max. Web Width 330mm 450mm
Max. Printing Width 320mm 440mm
Printing Repeat 180~380mm 180~380mm
Color 2-6 2-6
Thickness of Substrate 0.1~0.3mm 0.1~0.3mm
Machine Speed 10-80m/min 10-80m/min
Max. Unwind Diameter 650mm 650mm
Max. Rewind Diameter 650mm 650mm
Die cutting station 3 3
Main motor Capacity 2.2kw 2.2kw
Main power 3 Phases 380V/50hz 3 Phases 380V/50hz
Power
Overall Dimension(LxWx H) 2420 x1020 x2740mm 2420 x 1020 x 2740mm
Machine Weight about 2500kg/5 colors about 3000kg/5 Colors

More Details

2021040211480768bc4c050bcb4dcab0daa1682c391424

Insert BST Germany brand web guide with ultrasonic edge sensor guarantee paper straight feeding.

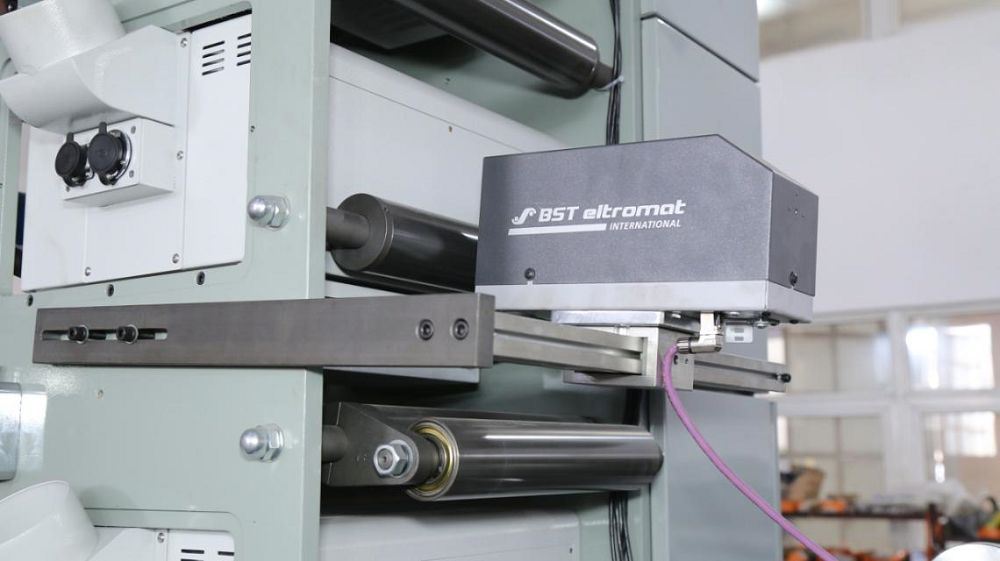

2021040211481603809b04f882438590bcc161197797b0

BST camera and monite. All time check the ten line register

20210402115400b8f3d8f946024fb894ee76b2d0b57070

Options device: Hydraulic control rewinding in diameter 1000MM

20210402115413d9cade3e7c4846d99e42a1d7e9d9c84e

Two tower printing design, connection part has another set webguide

20210402114839c3b648193bfc4e3dafb94e7c32161c63

Printing cylinder support thickness 1.7mm and 1.14 mm plate, support straight gear and helical gear both.

20210402114842503b0fda7ace45f2bdb3fc27007a943a

Unwinding tension brand Japan, Rewinding tension china Brand.
PLC control ,touch screen operation , any problem can show in touch screen immediately

2021040115523022169776895d4e4aa913a8aef8460a9a
202104011552368f964d928f244228b26adab3ccfa3023
202104011552392e833c05877a49c1b929f7aeb499b93d
20210401155255fbad6e4d422147cd87b5db11c461c338
20210401155258c3e5a1b1e2714fd79ce8ffb7920dcfa8
